The REL5NM-SP is a non-maintained emergency module designed to blend discreetly with general lighting. Operating independently to avoid lamp aging, it supports 3W/4W lamp modules with ≤0.5W standby power. The 0.2kg fire-retardant unit offers short-circuit protection and a 3-hour Lithium LiFePO4 battery with low-voltage cutoff.
DETAILS
DESIGNED TO DISCREETLY BLEND IN WITH YOUR GENERAL LIGHTING
- Prevent damage to fluorescent or LED lamps as it is independent from voltage and output from general lighting
- Optimal and uniform light point spacing for anti-panic luminaires and escape route luminaires can be achieved
- Reliability of the emergency modules is increased as the LED modules are addressed separately from the general lighting therefore aging effects are avoided
- Easy wiring and full compatibility
TECHNICAL SPECIFICATION
MODEL NO: REL5NM-SP
- Mode of Operation: Non-Maintained

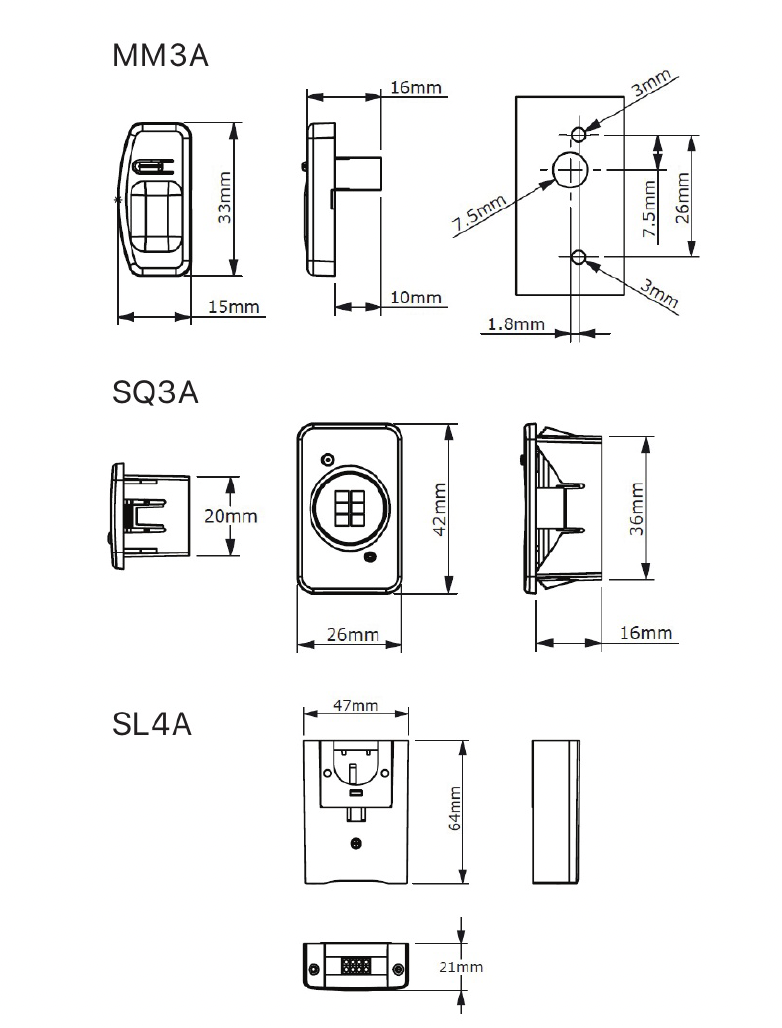

- Lamp Module: MM3A: 3W, SQ3A: 3W, SL4A: 4W
- Rated Duration: 3 Hours
- Mains Supply: 220-240 Volts, 50-60Hz
- Power Consumption: ≤0.5W (on standby)
- Battery: High Temperature Lithium LiFePO4
- Charger: Constant current / Constant voltage, short circuit protected
- Charge Monitor: LED
- Test Facility: Momentary Test Switch
- Safety Features: Low battery voltage cut off to prevent over discharge
- Fitting Construction: Injection moulded with fire retardant (UL94), high impact PC material
- Weight: Approx. 0.2kg

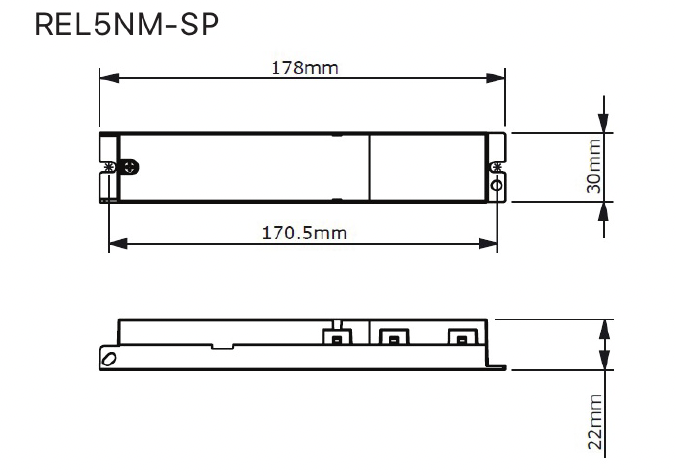

- Dimensions: 30mm (H) x 178mm (W) x 22mm (D)
- Standards / Compliance: SS IEC 60598-2-22, SS 563, CB, IEC 61347-2-7, IEC 61347-2-13, IEC 62384, IEC 60598-1
