The REL5NM-SP is a non-maintained, recessed emergency luminaire ideal for anti-panic open areas. It features a 3W white LED, ultra-low standby power consumption (≤0.5W), and an eco-friendly Lithium LiFePO4 battery providing 3 hours of backup. The slim, 0.2kg fire-retardant fixture fits cleanly through a 55–60mm hole.
DETAILS
NON-MAINTAINED RECESS EMERGENCY LUMINAIRE
- Long life, environmental friendly Lithium Iron Phosphate (LiFePO4) battery.
- Low Heat generation, ensures long and reliable service life
- Low battery voltage cut-off with latch function, to eliminate battery over discharge
- Charge LED indicator and test switch
- Optimal for anti-panic (open area) and escape route lighting applications
- High Quality, Long life LED module
- Energy saving, extra low standby power consumption
- Slim casing, fit through 55-60mm hole
- Easy installation and low maintenance
- Recess mount
TECHNICAL SPECIFICATION
MODEL NO: REL5NM-SP
- Mode of Operation: Non-Maintained
- Lamp: 3W White LED
- Rated Duration: 3 Hours
- Mains Supply: 220-240 Volts, 50-60Hz
- Power Consumption: ≤0.5W (on standby)
- Battery: High Temperature Lithium LiFePO4
- Charger: Constant current / Constant voltage, short circuit protected
- Charge Monitor: LED
- Test Facility: Momentary Test Switch
- Safety Features: Low battery voltage cut off to prevent over discharge
- Fitting Construction: Injection moulded with fire retardant (UL94), high impact PC material
- Weight: Approx. 0.2kg

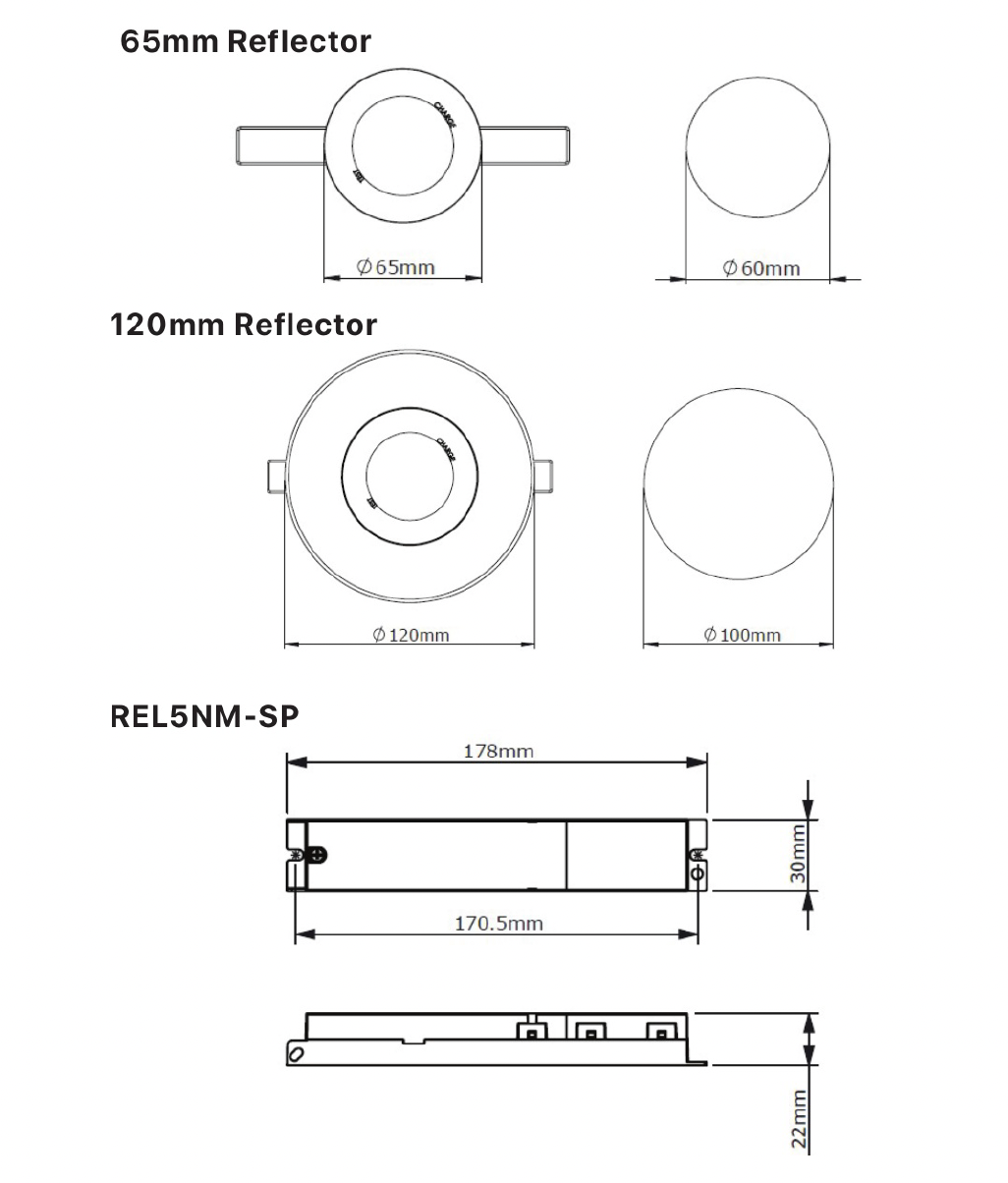

- Dimensions: 30mm (H) x 178mm (W) x 22mm (D)
- Standards / Compliance: SS IEC 60598-2-22, SS 563, CB, IEC 61347-2-7, IEC 61347-2-13, IEC 62384, IEC 60598-1
