The REL10NM-SP-SMART is a non-maintained recessed emergency luminaire with automated wireless self-testing and real-time online reporting to eliminate manual testing costs. It features a 6W LED, ≤0.5W standby power, fire-retardant construction, multi-standard compliance, and a 3-hour Lithium LiFePO4 battery with integrated over-discharge protection.
DETAILS
NON-MAINTAINED RECESS EMERGENCY LUMINAIRE WITH SELF TEST FUNCTION AND WIRELESS MONITORING SYSTEM
- Eliminates the manpower cost to manually test and monitor the emergency lights
- Real-time view of all the maintenance activities
- Tracking failure in the LEDs or Backup batteries
- Timely tests are executed on each maintenance routines
- Dynamic online reporting via Visualization Chart are used for Trending of the performance of the different zones of emergency lighting
- Test results are stored online for easy verification of the maintenance testing
- Long life, environmental friendly Lithium Iron Phosphate (LiFePO4) battery
- Low heat generation, ensures long and reliable service life
TECHNICAL SPECIFICATION
MODEL NO: REL10NM-SP-SMART
- Mode of Operation: Non-Maintained
- Lamp: 6W White LED
- Rated Duration: 3 Hours
- Mains Supply: 220-240 Volts, 50-60Hz
- Power Consumption: ≤0.5W (on standby)
- Battery: High Temperature Lithium LiFePO4
- Charger: Constant current / Constant voltage, short circuit protected
- Charge Monitor: LED
- Test Facility: Momentary Test Switch / Wireless Self Test
- Safety Features: Low battery voltage cut off to prevent over discharge
- Fitting Construction: Injection moulded with fire retardant (UL94), high impact PC material
- Weight: Approx. 0.2kg

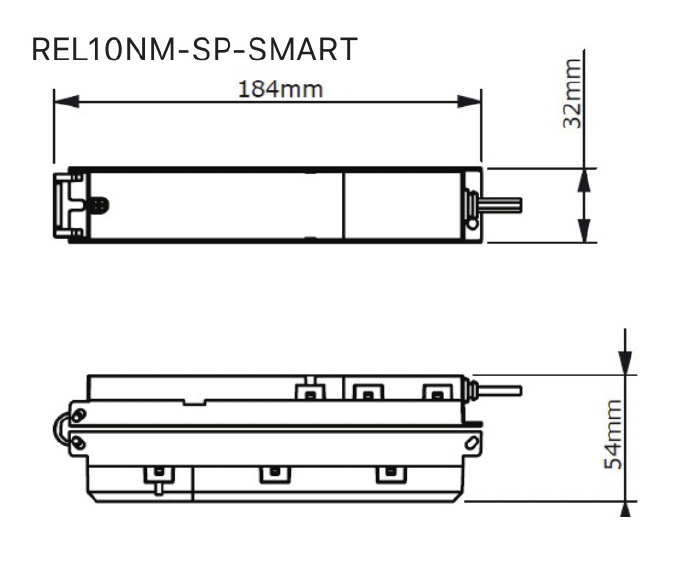

- Dimensions: 32mm (H) x 184mm (W) x 54mm (D)
- Standards / Compliance: SS IEC 60598-2-22, SS 563, CB, IEC 61347-2-7, IEC 61347-2-13, IEC 62384, IEC 60598-1
