The REL10NM-SP is a non-maintained recessed emergency luminaire designed for anti-panic and escape route lighting. It features a powerful 6W white LED drawing under 0.5W on standby. The 0.2kg fire-retardant unit includes a 3-hour Lithium LiFePO4 battery, comprehensive multi-standard compliance, and automatic protection against over-discharge.
DETAILS
NON-MAINTAINED RECESS EMERGENCY LUMINAIRE
- Long life, environmental friendly Lithium Iron Phosphate (LiFePO4) battery
- Low heat generation, ensure long and reliable service life
- Low battery voltage cut-off with latch function, to eliminate battery over discharge.
- Charge LED indicator and test switch.
- Optimal for anti-panic (open area) and escape route lighting applications
- High quality, long life LED module.
- Energy savings, extra low standby power consumption
- Slim casing, fit through 55-60cm cut hole.
- Easy installation and low maintenance.
- Recess mount
TECHNICAL SPECIFICATION
MODEL NO: REL10NM-SP
- Mode of Operation: Non-Maintained
- Lamp: 6W White LED
- Rated Duration: 3 Hours
- Mains Supply: 220-240 Volts, 50-60Hz
- Power Consumption: ≤0.5W (on standby)
- Battery: High Temperature Lithium LiFePO4
- Charger: Constant current / Constant voltage, short circuit protected
- Charge Monitor: LED
- Test Facility: Momentary Test Switch
- Safety Features: Low battery voltage cut off to prevent over discharge
- Fitting Construction: Injection moulded with fire retardant (UL94), high impact PC material
- Weight: Approx. 0.2kg

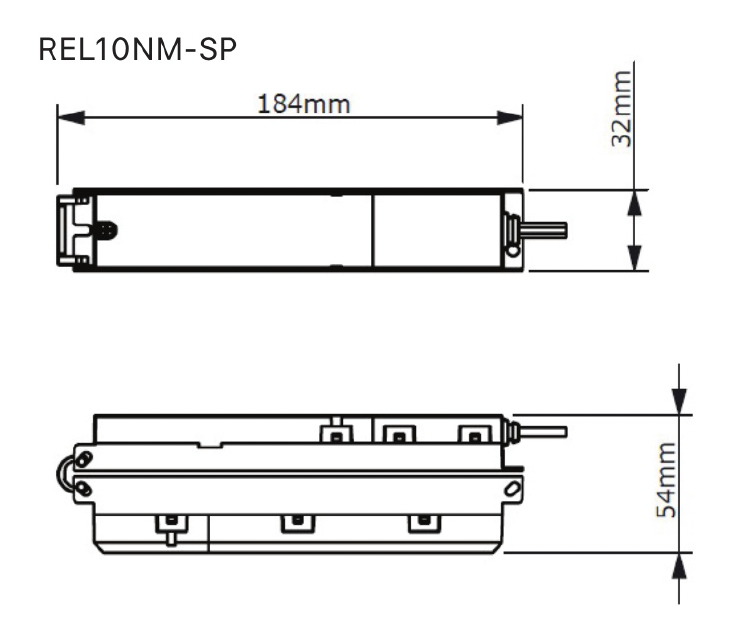

- Dimensions: 32mm (H) x 184mm (W) x 54mm (D)
- Standards / Compliance: SS IEC 60598-2-22, SS 563, CB, IEC 61347-2-7, IEC 61347-2-13, IEC 62384, IEC 60598-1
