Floodlight LED

Floodlights > Floodlights
The Floodlight | Floodlight LED are economical replacements for traditional double-ended halogen-lamp floodlights. The combination of high-efficiency LED and high-reflectivity optic ensures excellent light output for general-purpose applications.

DETAILS

The Floodlight | Floodlight LED are economical replacements for traditional double-ended halogen-lamp floodlights. The combination of high-efficiency LED and high-reflectivity optic ensures excellent light output for general-purpose applications. The floodlights’ longtime enables substantial energy and maintenance savings. This luminaire tempered with frosted front glass increases uniformity throughout the illumination. Some recommended applications are architecture and landscape lighting.

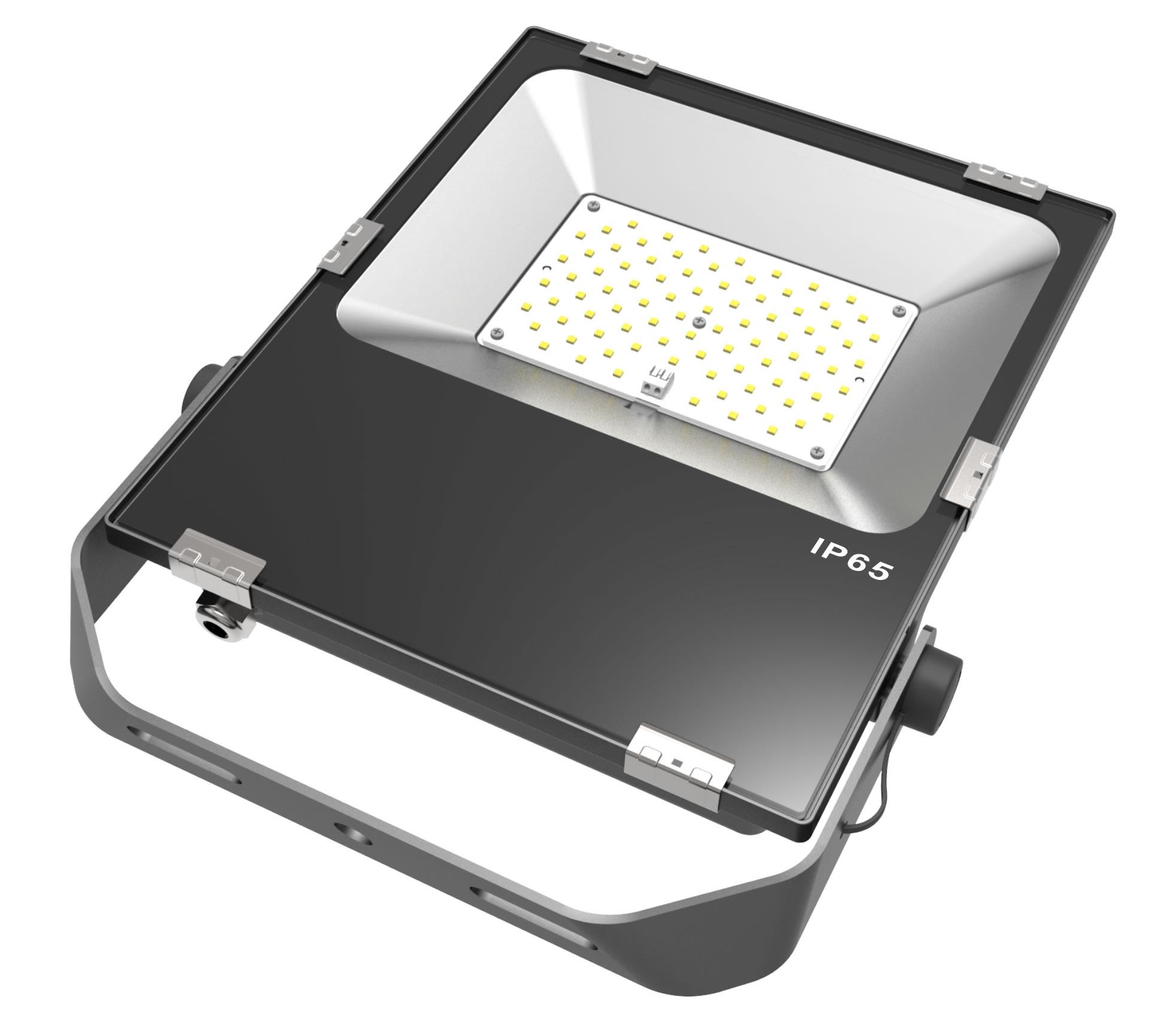

Floodlight LED 150WFloodlight LED 150W

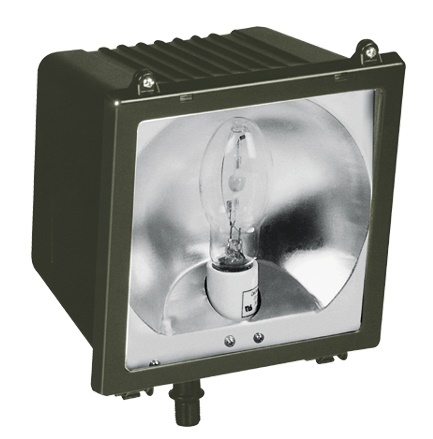

Floodlight LED replaces HID floodlight

HID FloodlightHID Floodlight 400W



Product Features & Benefits
  • Available in 10W, 20W, 30W & 50W
  • Aluminum heat sink
  • High color rendering: CRI > 80
  • High system lumen efficacy up to 90lm/W
  • IP65 water and dust proof
  • IK07 vandal-protected
  • IP safe high efficient LEDs ensure system liability and legal risks free
  • Long 30,000 (L70/B50) hours lifetime reduces maintenance costs
  • Elegant slim design reduces windage
  • Premium grade polycarbonate front frame to reduce overall product weight
  • Pre-wired with mains cable
  • Safety compliance Certificates: CQC & CB
  • Standard CCT: 6500K & 3000K
  • Tempered frosted front glass to increase uniformity
  • Operating temperature: -30 – +50°C
  • Storage temperature: -40 – +70°C
 Recommended Application:
  • Architecture and landscape lighting
  • Industrial warehouses lighting
  • Billboard and advertising lighting
  • Security, amenity, and parking area lighting

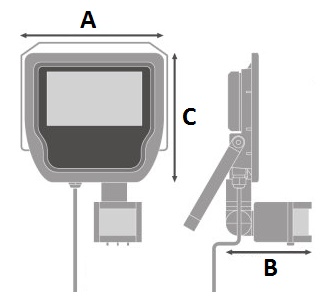

Drawing/Dimensions:
Floodlight LED Dimension

Floodlight LED

Length (A)

Width (B)

Height (C)

Weight

Floodlight LED 10W

115mm

39mm

125mm

0.39kg

Floodlight LED 20W

140mm

41mm

130mm

0.57kg

Floodlight LED 30W

150mm

42mm

140mm

0.62kg

Floodlight LED 50W

180mm

46mm

155mm

0.93kg



Product Description

Watt

Lumen

Kelvin

CRI

Voltage

Quantity

Floodlight 10W/3000K

10

800

3000

>70

220-240

10

Floodlight 10W/6500K

10

800

6500

>70

220-240

10

Floodlight 20W/3000K

20

1800

3000

>80

220-240

10

Floodlight 20W/6500K

20

1800

6500

>80

220-240

10

Floodlight 30W/3000K

30

2700

3000

>80

220-240

10

Floodlight 30W/6500K

30

2700

6500

>80

220-240

10

Floodlight 50W/3000K

50

4500

3000

>80

220-240

10

Floodlight 50W/6500K

50

4500

6500

>80

220-240

10

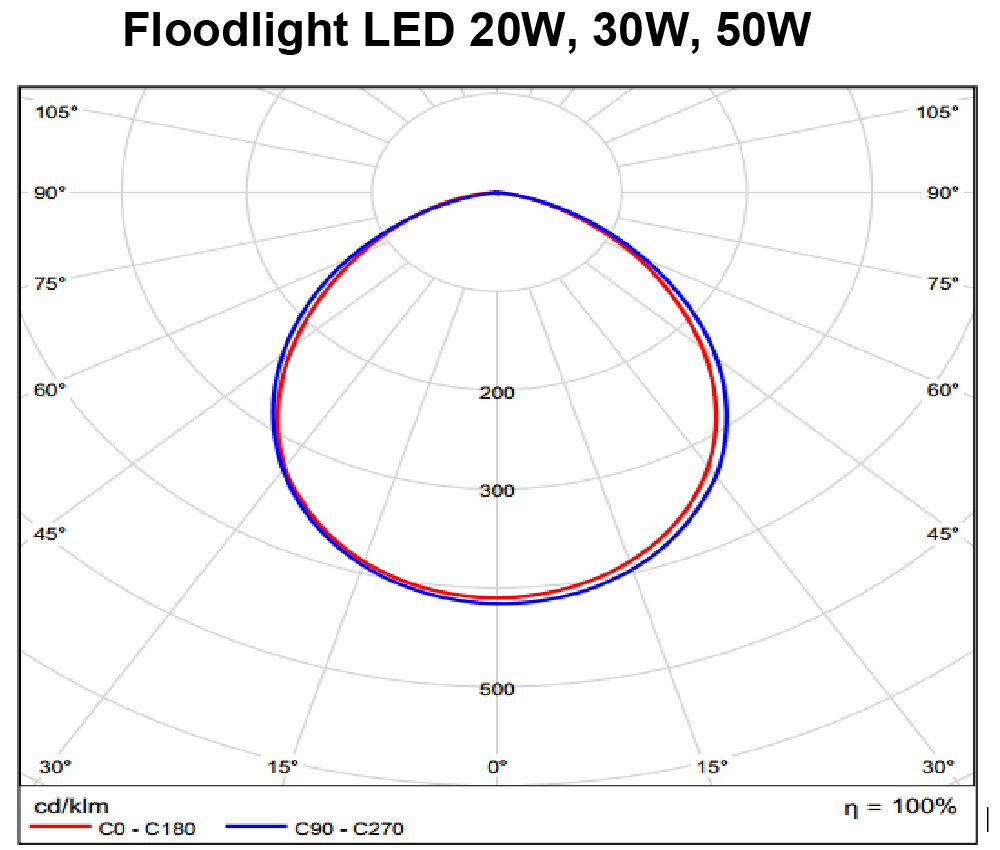

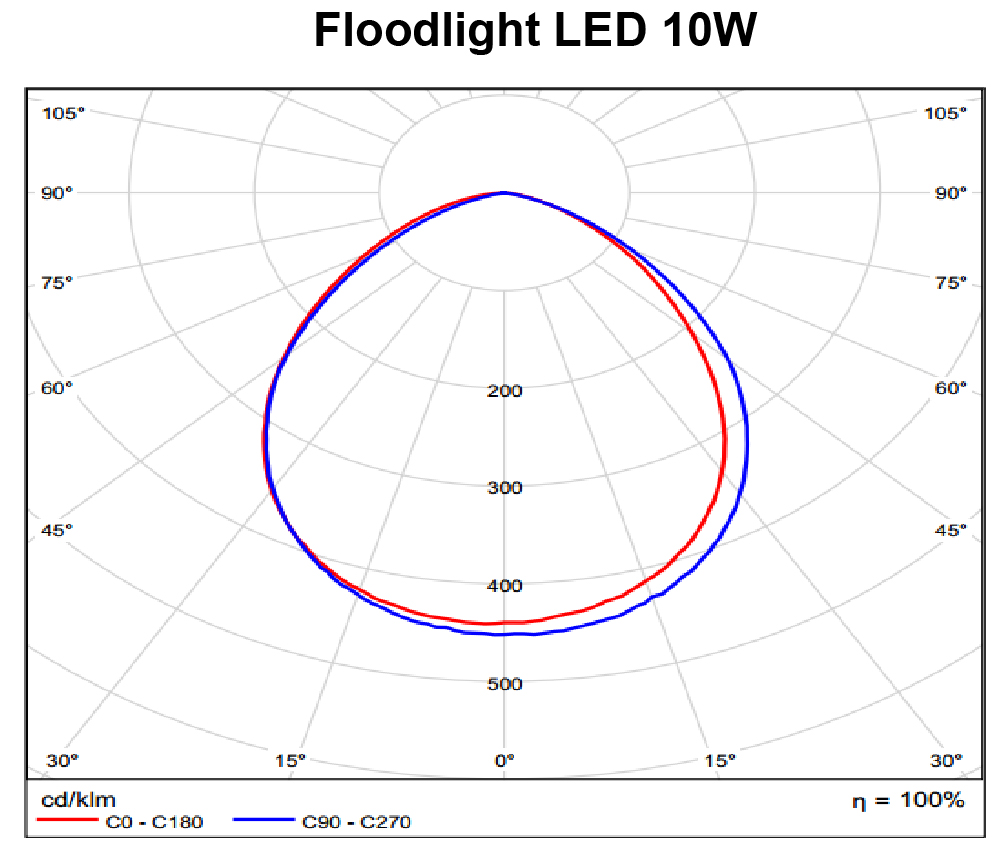

Polar Intensity Diagram:

Polar Intensity Diagram 1 Polar Intensity Diagram 2
