The EXB-LED-M-WP is a maintained emergency sign built with high-impact, fire-retardant materials to withstand harsh environmental conditions. Exceeding SS IEC and ISO brightness standards, it utilizes a 2.5W efficient LED module with a 100,000-hour lifespan. The 0.9kg unit includes a 3-hour backup battery with automatic low-voltage protection.
DETAILS
WELL EQUIPPED EXIT LIGHT THAT DEFIES HARSH ENVIRONMENTAL CONDITIONS.
- Ultra bright white LEDs meeting ISO safety colour requirements.
- Exceeds SS IEC 60598-2-22 and SS 563 brightness requirements.
- Extra low power consumption
- High Quality, Long Life SMD LED module
- Series connection of LEDs achieve a high level of uniform light distribution and ensuring maximum lifespan
- Low battery voltage cut-off with latch function, to eliminate battery over discharge
TECHNICAL SPECIFICATION
MODEL NO: EXB-LED-M-WP
- Mode of Operation: Maintained
- Lamp: White LED with life-span > 100,000 hours
- Rated Duration: 3 Hours
- Mains Supply: 220-240 Volts, 50-60Hz
- Power Consumption: 2.5W (Total standby power inclusive of LED converter)
- Battery: High Temperature Lithium LiFePO4 / High Temperature Nickel Cadmium
- Charger: Regulated variable rate
- Charge Monitor: LED
- Test Facility: Micro switch
- Mounting: Surface wall / Semi-recessed wall
- Safety Features: Low battery voltage cut off to prevent over discharge
- Diffuser: Clear polycarbonate (fire retardant)
- Fitting Construction: Injection moulded with fire retardant (UL94), high impact material
- Weight: Approx. 0.9kg

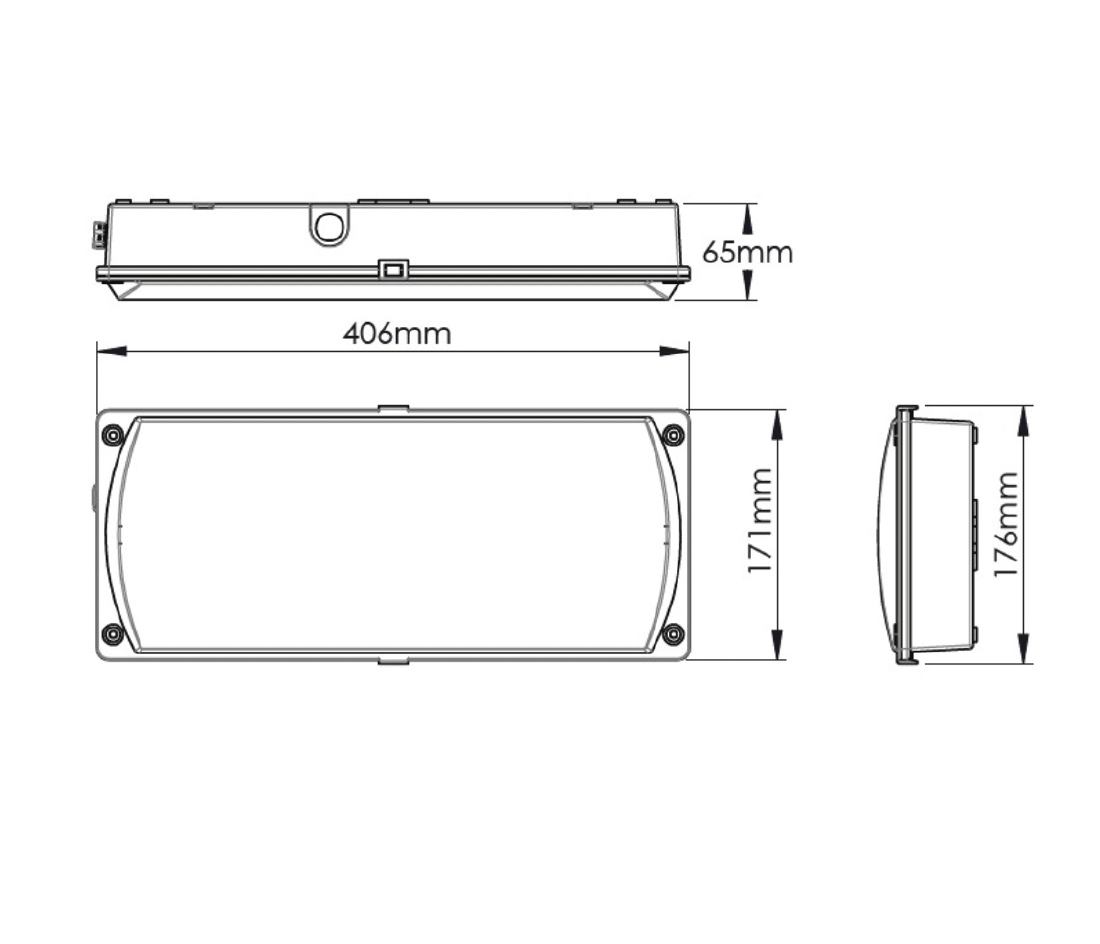

- Dimensions: 171mm (H) x 406mm (W) x 65mm (D)
- Standards / Compliance: SS IEC 60598-2-22, SS 563
