The EXB-LED-M-LV is a maintained, low-level emergency exit sign designed with a screwless cover for recessed wall mounting along smoke-prone escape routes. It features an efficient 2.5W power draw, 100,000-hour LED lifespan, powder-coated steel casing, SS IEC compliance, and a 3-hour backup battery with automatic over-discharge protection.
DETAILS
LOW LEVEL EXIT LIGHT IMPROVE SAFETY WHEN SMOKE OBSCURE EXIT LIGHT
- Screwless cover
- Suitable for recess mounting at low level escape routes or above doors
- Ultra bright white LEDs meeting ISO safety colour requirements
- Exceeds SS IEC 60598-2-22 and SS 563 brightness requirements
- Extra low power consumption
- High Quality, Long life SMD LED module
- Series connection of LEDs provides equal biasing of all LEDs ensures maximum LED life span and uniform light distribution
- Low battery voltage cut-off with latch function, to eliminate battery over discharge
- High efficiency charger and LED converter
- Charge indicator and test switch
TECHNICAL SPECIFICATION
MODEL NO: EXB-LED-M-LV
- Mode of Operation: Maintained
- Lamp: White LED with life-span > 100,000 hours
- Rated Duration: 3 Hours
- Mains Supply: 220-240 Volts, 50-60Hz
- Power Consumption: 2.5W (Total standby power inclusive of LED converter)
- Battery: High Temperature Lithium LiFePO4 / High Temperature Nickel Cadmium
- Charger: Regulated variable rate
- Charge Monitor: LED
- Test Facility: Micro switch
- Mounting: Recessed wall mount
- Safety Features: Low battery voltage cut off to prevent over discharge
- Diffuser: Acrylic plate (fire retardant)
- Fitting Construction: Electro galvanized steel. Epoxy powder coating for casing and gear tray
- Weight: Approx. 1.5kg

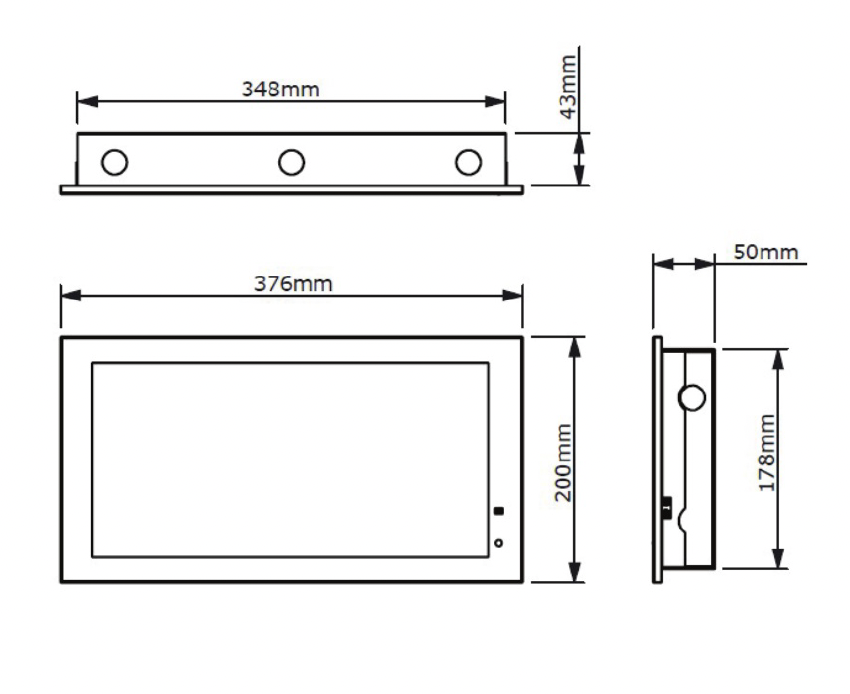

- Dimensions: Recess mount: 200mm (H) x 376mm (W) x 50mm (D)
- Standards / Compliance: SS IEC 60598-2-22, SS 563
