The EXB-LED-M is a maintained, classic box exit light designed with a durable, powder-coated galvanized steel casing. Delivering ultra-bright, uniform illumination that exceeds SS IEC and ISO standards, it draws only 2.5W. The 1.5kg fixture provides 3 hours of battery backup with built-in low-voltage protection.
DETAILS
COMPACT AND CLASSIC BOX EXIT LIGHT
- Ultra bright white LEDs meeting ISO safety colour requirements
- Exceeds SS IEC 60598-2-22 and SS 563 brightness requirements
- Extra low power consumption
- High Quality, Long Life SMD LED module
- Series connection of LEDs provide equal biasing of LEDs ensures maximum LED life span and uniform light distribution
- Low battery voltage cut-off with latch function, to eliminate battery over discharge
- High efficiency charger and LED converter
- Charge indicator and test switch
TECHNICAL SPECIFICATION
MODEL NO: EXB-LED-M
- Mode of Operation: Maintained
- Lamp: White LED with life-span > 100,000 hours
- Rated Duration: 3 Hours
- Mains Supply: 220-240 Volts, 50-60Hz
- Power Consumption: 2.5W (Total standby power inclusive of LED converter)
- Battery: High Temperature Lithium LiFePO4 / High Temperature Nickel Cadmium
- Charger: Regulated variable rate
- Charge Monitor: LED
- Test Facility: Micro switch
- Mounting: Suspended / Surface ceiling / Surface wall
- Safety Features: Low battery voltage cut off to prevent over discharge
- Diffuser: Acrylic plate (fire retardant)
- Fitting Construction: Electro galvanized steel. Epoxy powder coating for casing and gear tray
- Weight: Approx. 1.5kg

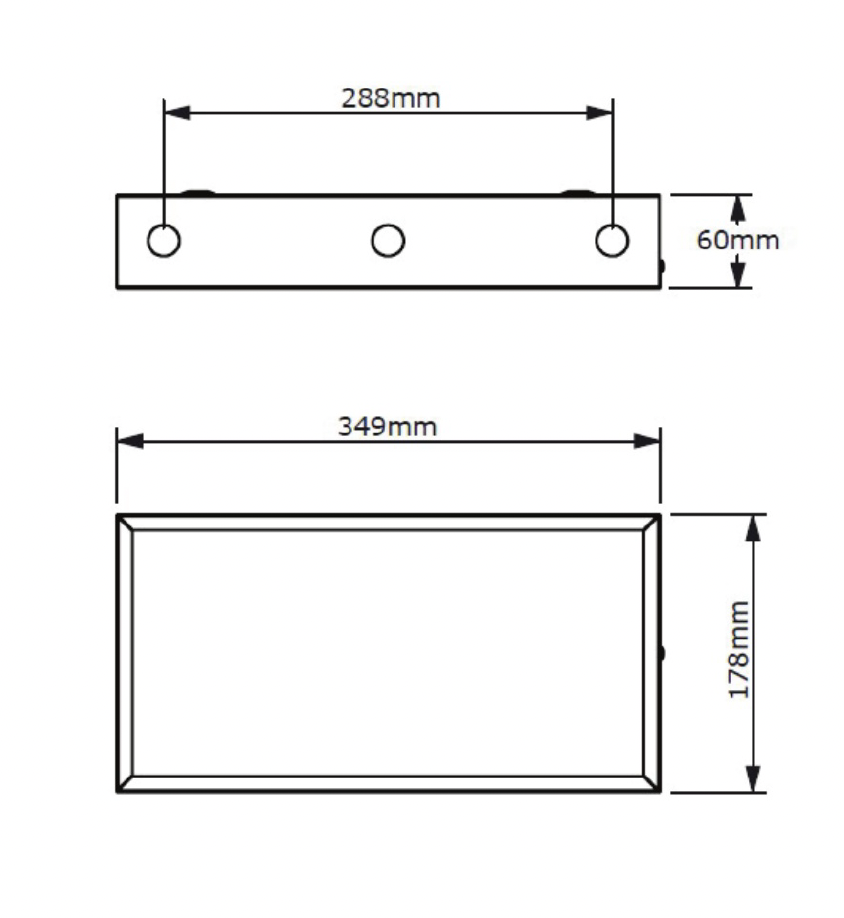

- Dimensions: Surface mount: 178mm (H) x 349mm (W) x 60mm (D)
- Standards / Compliance: SS IEC 60598-2-22, SS 563
