The EX-SB-M-SMART is a maintained emergency LED sign featuring automated wireless self-testing and real-time online reporting to eliminate manual maintenance costs. It features a 2.5W power draw, a 100,000-hour lifespan, fire-retardant construction, SS IEC compliance, and a 3-hour Lithium LiFePO4 backup battery with automatic low-voltage protection.
DETAILS
AESTHETIC, FUNCTIONAL, SMART SELF TEST, SEAMLESS WIRELESS MONITORING
- Eliminates the manpower cost to manually test and monitor exit lights
- Extra low power consumption
- Real-time view of all the maintenance activities. Tracking failure in the LEDs or Backup batteries
- Timely tests are executed on each Maintenance Routines
- Dynamic Online Reporting via Visualization Chart are used for Trending of the performance of the different Zones of exit lights
- Durable fire retardant construction (UL 94)
- Test results are stored online for easy verification of the maintenance testing
TECHNICAL SPECIFICATION
MODEL NO: EX-SB-M-SMART
- Mode of Operation: Maintained
- Lamp: White LED module with burning life-span > 100,000 hours
- Rated Duration: 3 Hours
- Mains Supply: 220-240 Volts, 50-60Hz
- Power Consumption: 2.5W (Total standby power inclusive of LED converter)
- Battery: High Temperature Lithium LiFePO4
- Charger: Regulated variable rate
- Charge Monitor: LED
- Test Facility: Micro switch / Wireless Self Test
- Mounting: Surface wall / Suspended / Surface ceiling / Recessed ceiling
- Safety Features: Low battery voltage cut off to prevent over discharge
- Diffuser: Acrylic plate (fire retardant)
- Fitting Construction: Injection moulded with fire retardant (UL94), high impact material
- Weight: Approx. 0.6kg

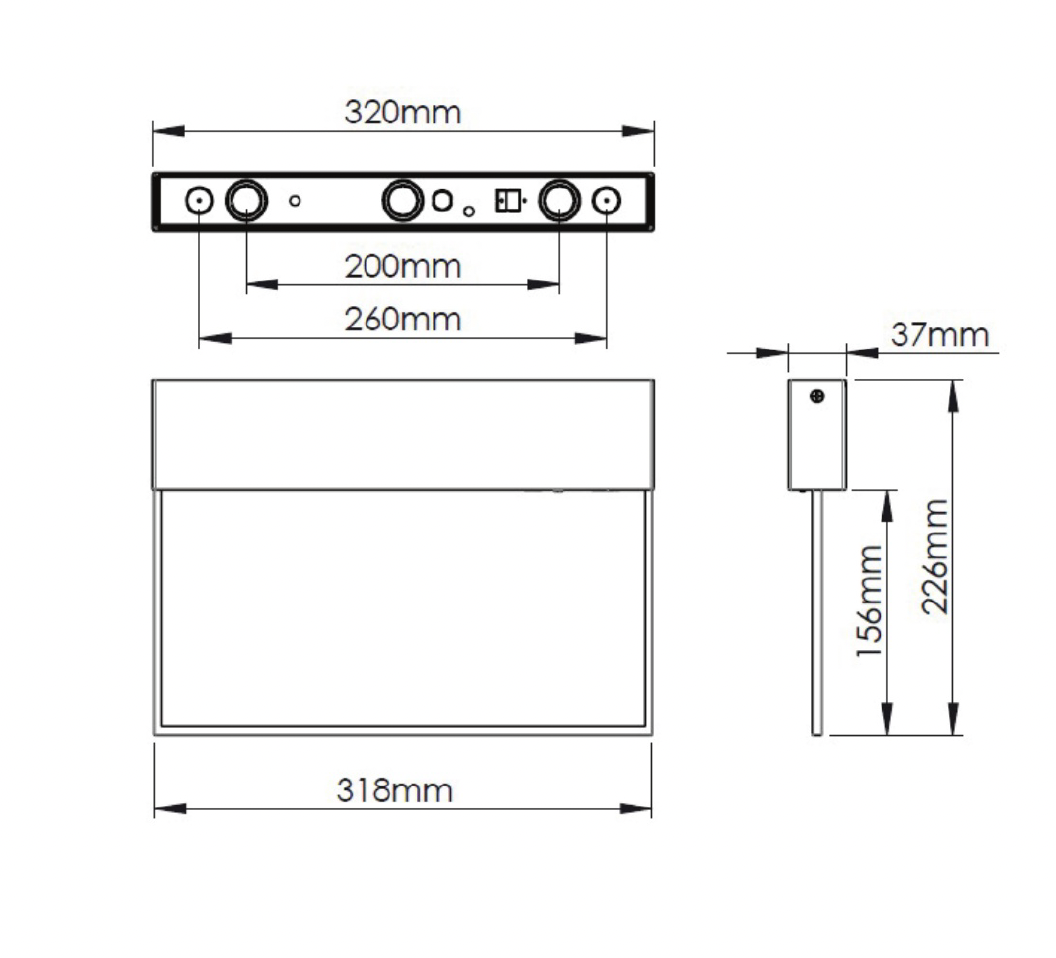

- Dimensions: 226mm (H) x 318mm (W) x 37mm (D)
- Standards / Compliance: SS IEC 60598-2-22, SS 563
