The EX-SB-M-SLR / DLR is a compact, lightweight emergency LED sign engineered for quick installation and versatile mounting. It features an efficient 2.5W power draw, 100,000-hour lamp life, fire-retardant construction, and full SS IEC compliance. A 3-hour backup battery with automatic low-voltage cut-off safely protects the unit against over-discharge.
DETAILS
AESTHETIC, FUNCTIONAL AND COMPACT DESIGN
- Designed for fast installation and easy maintenance.
- Extra low power consumption
- High Quality, Long Life SMD LED module
- Numerous installations option available
- Low battery voltage cut-off with latch function, to eliminate battery over discharge
- Durable fire retardant construction (UL 94)
- Lightweight ergonomics design boost productivity of installers
TECHNICAL SPECIFICATION
MODEL NO: EX-SB-M-SLR / EX-SB-M-DLR
- Mode of Operation: Maintained
- Lamp: White LED module with life-span > 100,000 hours
- Rated Duration: 3 Hours
- Mains Supply: 220-240 Volts, 50-60Hz
- Power Consumption: 2.5W (Total standby power inclusive of LED converter)
- Battery: High Temperature Lithium LiFePO4 / High Temperature Nickel Cadmium
- Charger: Regulated variable rate
- Charge Monitor: LED
- Test Facility: Micro switch
- Mounting: Surface wall / Suspended / Surface ceiling / Recessed ceiling
- Safety Features: Low battery voltage cut off to prevent over discharge
- Diffuser: Acrylic plate (fire retardant)
- Fitting Construction: Injection moulded with fire retardant (UL94), high impact material
- Weight: Approx. 0.6kg

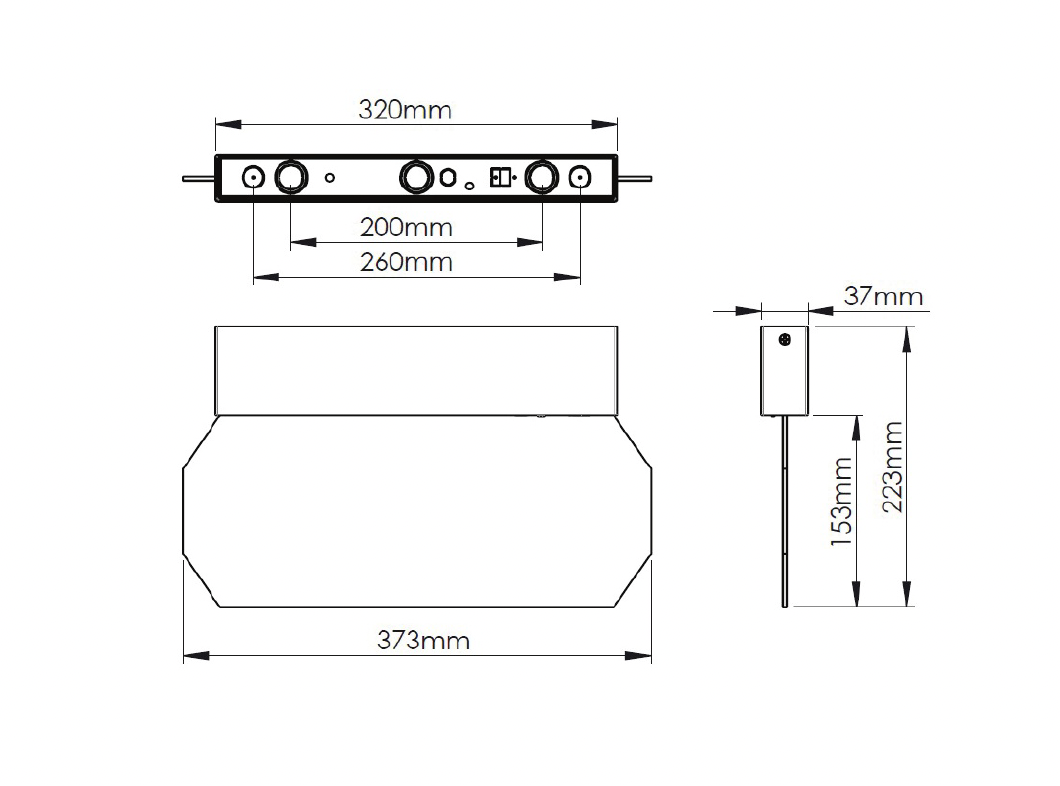

- Dimensions: 223mm (H) x 373mm (W) x 37mm (D)
- Standards / Compliance: SS IEC 60598-2-22, SS 563
