The EX-LED-M is a maintained, slim frameless exit sign exceeding SS IEC and ISO brightness standards. It features a 2.5W power draw, a 100,000-hour LED lifespan, and a powder-coated galvanized steel casing. Weighing 1.2kg, it includes an add-on plate for recessed mounting and a 3-hour backup battery with low-voltage protection.
DETAILS
SLIM FRAMELESS EXIT SIGN WITH NUMEROUS INSTALLATION OPTIONS
- Ultra bright white LEDs meeting ISO safety colour requirements.
- Exceeds SS IEC 60598-2-22 and SS 563 brightness requirements.
- Extra low power consumption
- High Quality, Long Life SMD LED module
- Series connection of LEDs provides equal biasing of all LEDs ensures maximum LED life span and uniform light distribution
- Low battery voltage cut-off with latch function to eliminate battery over discharge.
- Add-on plate for recess mounting.
TECHNICAL SPECIFICATION
MODEL NO: EX-LED-M
- Mode of Operation: Maintained
- Lamp: White LED with life-span > 100,000 hours
- Rated Duration: 3 Hours
- Mains Supply: 220-240 Volts, 50-60Hz
- Power Consumption: 2.5W (Total standby power inclusive of LED converter)
- Battery: High Temperature Lithium LiFePO4 / High Temperature Nickel Cadmium
- Charger: Regulated variable rate
- Charge Monitor: LED
- Test Facility: Micro switch
- Mounting: Surface mount (Recessed mount option available)
- Safety Features: Low battery voltage cut off to prevent over discharge
- Diffuser: Acrylic plate (fire retardant)
- Fitting Construction: Electro galvanized steel. Epoxy powder coating for casing and gear tray
- Weight: Approx. 1.2kg

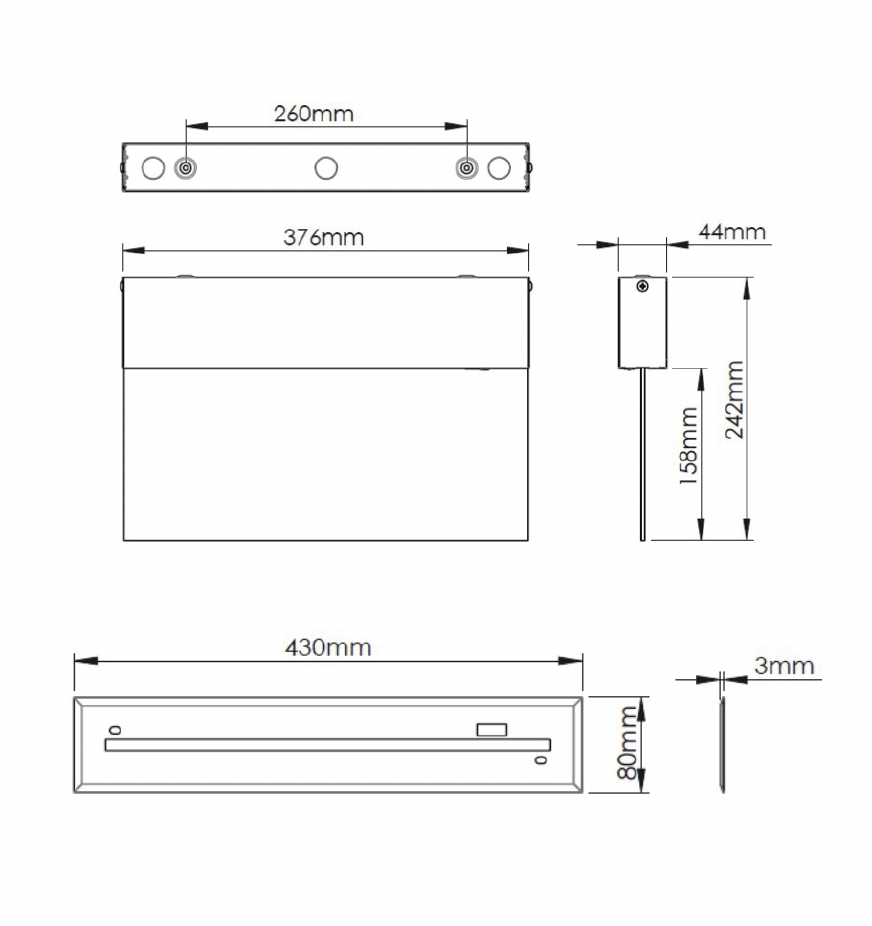

- Dimensions: 242mm (H) x 376mm (W) x 44mm (D)
- Standards / Compliance: SS IEC 60598-2-22, SS 563
