The EX-BH-M is an IP65 weatherproof, floor-level emergency sign built from high-impact PC/ABS material. Drawing 2.5W, it provides a 100,000-hour LED lifespan, low heat generation, and flexible surface or recessed installation. The lightweight 0.6kg fixture features short-circuit protection and a 3-hour battery backup with low-voltage cutoff.
DETAILS
COMPACT EXIT LIGHT ENHANCING SAFETY AT FLOOR LEVEL
- Designed for fast installation and easy maintenance.
- High quality, Long life SMD LED module
- Low heat generation, ensures long and reliable service life
- Low battery voltage cut-off with latch function to eliminate battery over discharge
- Lightweight ergonomic design boosting productivity of installers
- Numerous installation options, surface, recess and low-level applications
TECHNICAL SPECIFICATION
Model No: EX-BH-M
- Mode of Operation: Maintained
- Lamp: White LED with life-span > 100,000 hours
- Rated Duration: 3 Hours
- Mains Supply: 220-240 Volts, 50-60Hz
- Power Consumption: 2.5W (Total standby power inclusive of LED converter)
- Battery: High Temperature Lithium LiFePO4 / High Temperature Nickel Cadmium
- Charger: Constant current / Constant voltage, short circuit protected
- Charge Monitor: LED
- Test Facility: Micro switch
- Mounting: Surface / Recess mount
- Safety Features: Low battery voltage cut off to prevent over discharge
- Diffuser: Acrylic plate
- Fitting Construction: Injection moulded with fire retardant (UL94), high impact PC/ABS material
- Ingress Protection: IP65
- Weight: Approx. 0.6kg

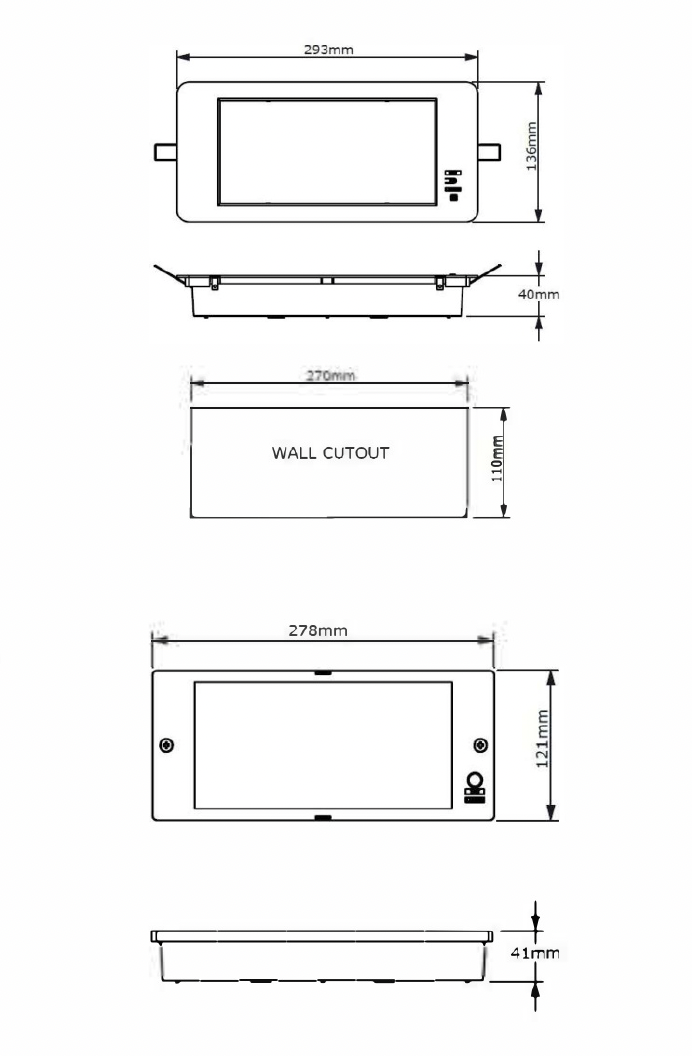

- Dimensions:
- Surface: 121mm (H) x 278mm (W) x 41mm (D)
- Recess: 136mm (H) x 293mm (W) x 40mm (D)
- Standards / Compliance: SS IEC 60598-2-22, SS 563
